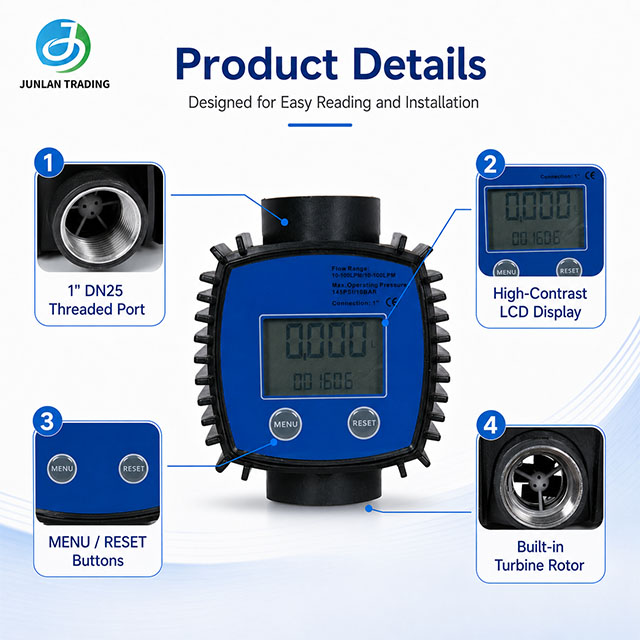

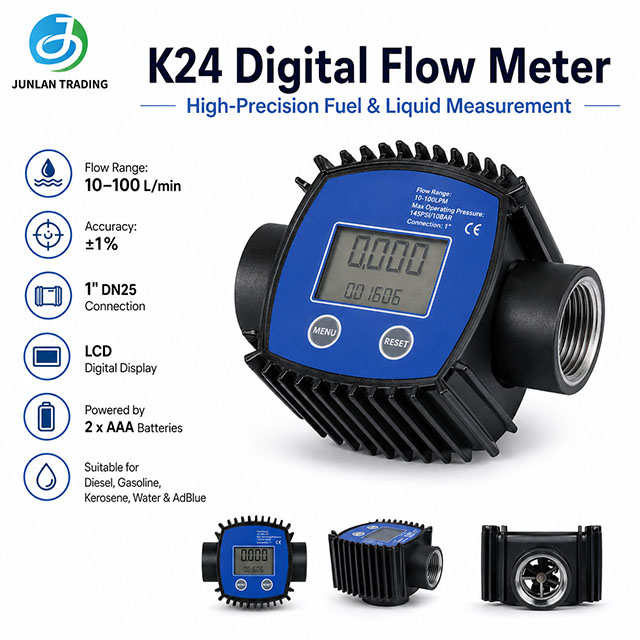

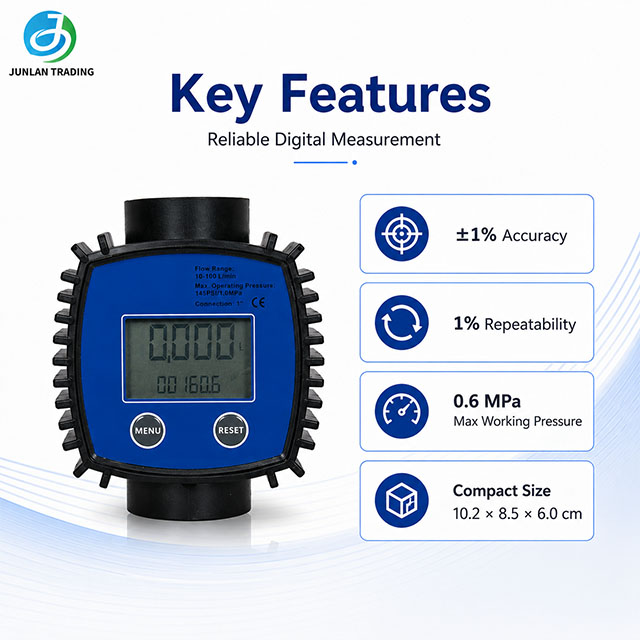

Turbine Flow Meter

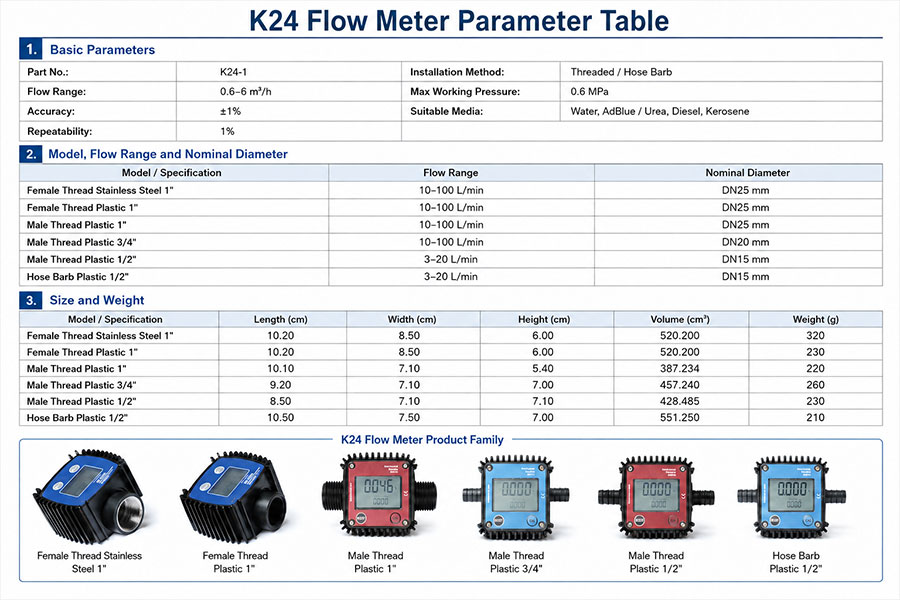

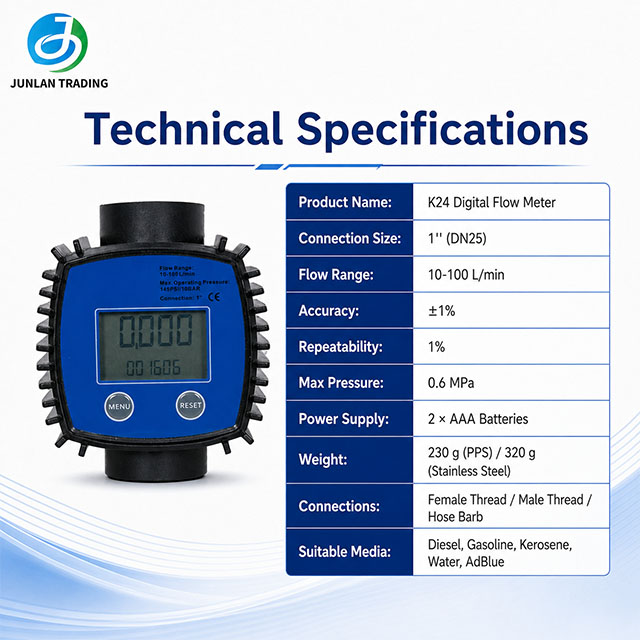

1. Basic Parameters

Part No.:

K24-1

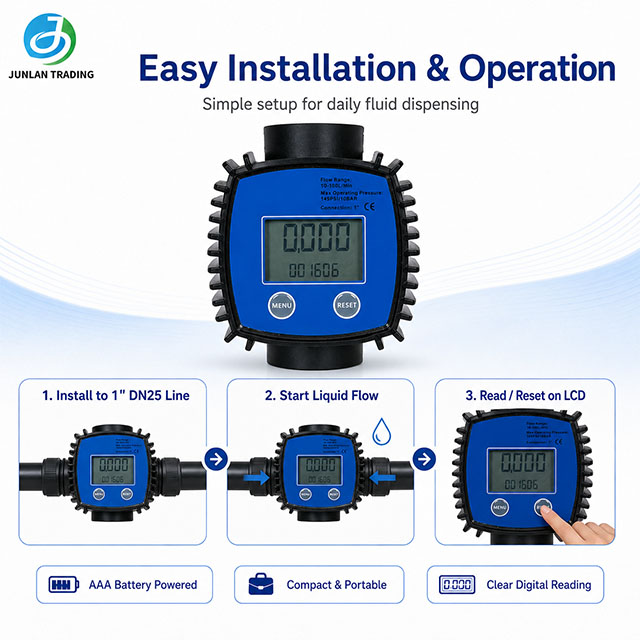

Installation Method:

Threaded / Hose Barb

Flow Range:

0.6–6 m³/h

Max Working Pressure:

0.6 MPa

Accuracy:

±1%

Suitable Media:

Water, AdBlue / Urea, Diesel, Kerosene

Repeatability:

1%

2. Model, Flow Range and Nominal Diameter

Model / Specification

Flow Range

Nominal Diameter

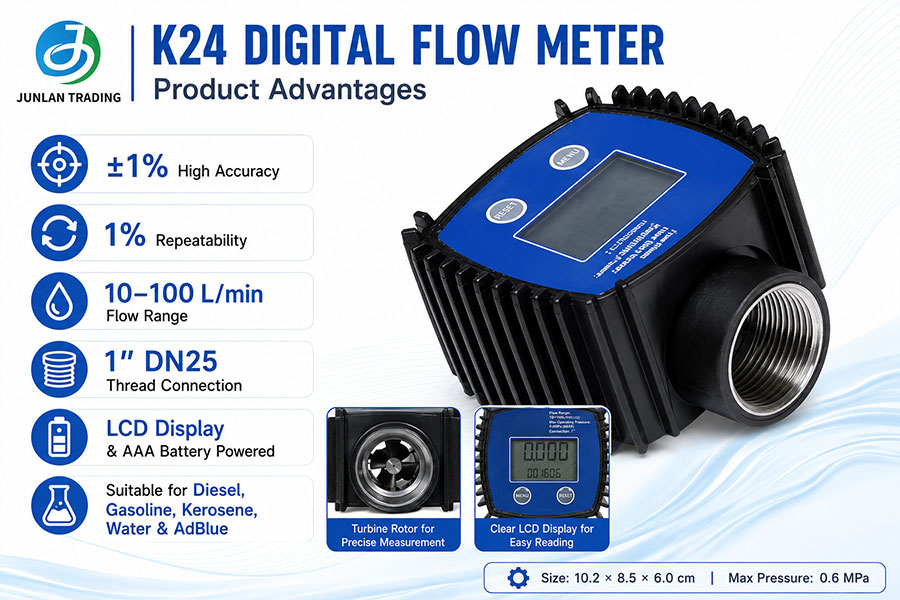

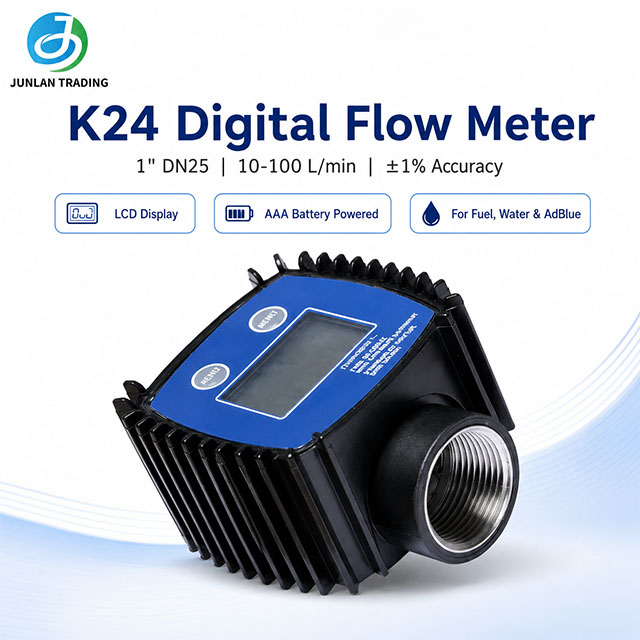

Female Thread Stainless Steel 1"

10–100 L/min

DN25 mm

Female Thread Plastic 1"

10–100 L/min

DN25 mm

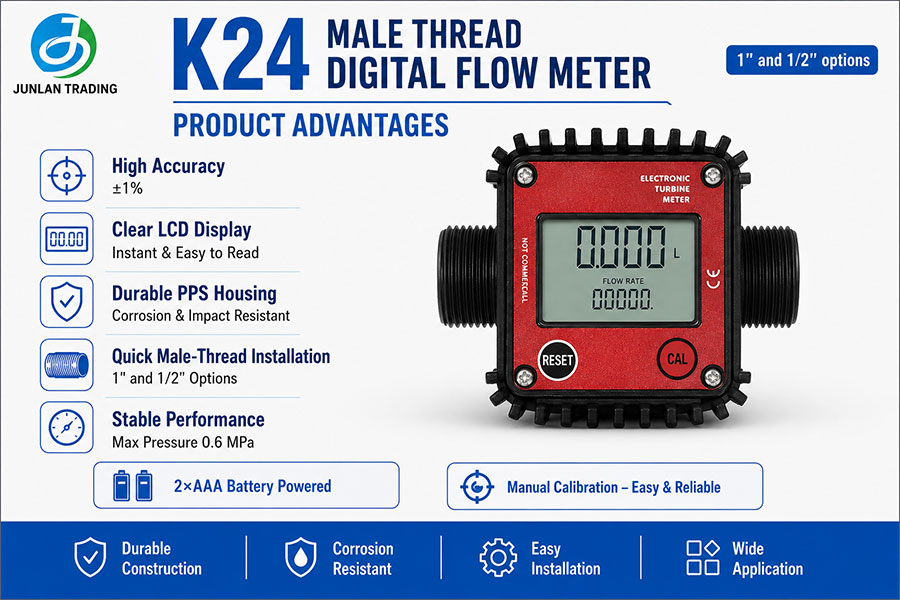

Male Thread Plastic 1"

10–100 L/min

DN25 mm

Male Thread Plastic 3/4"

10–100 L/min

DN20 mm

Male Thread Plastic 1/2"

3–20 L/min

DN15 mm

Hose Barb Plastic 1/2"

3–20 L/min

DN15 mm

3. Size and Weight

Model / Specification

Length (cm)

Width (cm)

Height (cm)

Volume (cm³)

Weight (g)

Female Thread Stainless Steel 1"

10.20

8.50

6.00

520.200

320

Female Thread Plastic 1"

10.20

8.50

6.00

520.200

230

Male Thread Plastic 1"

10.10

7.10

5.40

387.234

220

Male Thread Plastic 3/4"

9.20

7.10

7.00

457.240

260

Male Thread Plastic 1/2"

8.50

7.10

7.10

428.485

230

Hose Barb Plastic 1/2"

10.50

7.50

7.00

551.250

210

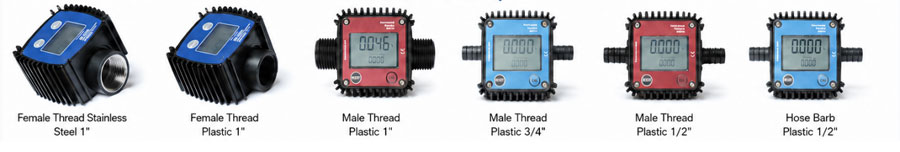

K24 Flow Meter Product Family
