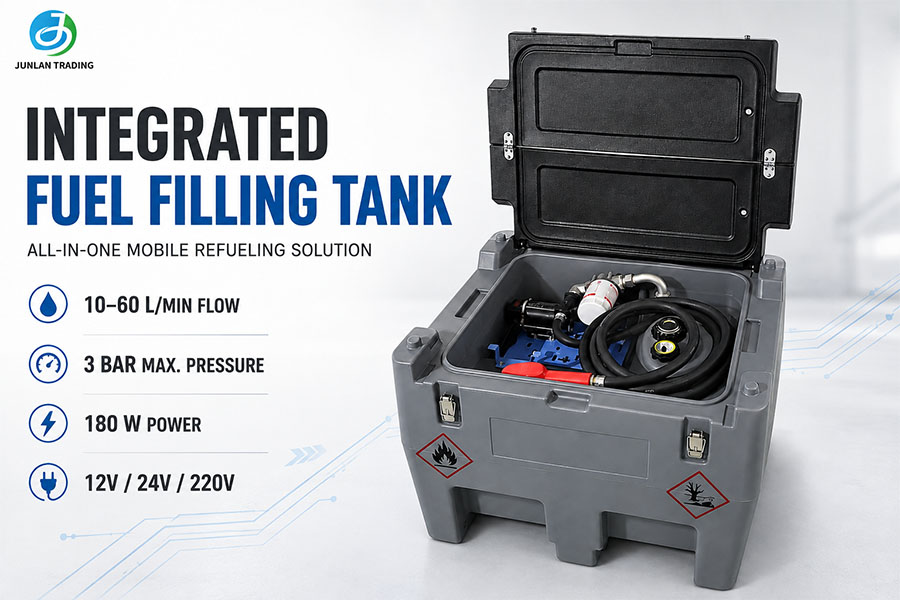

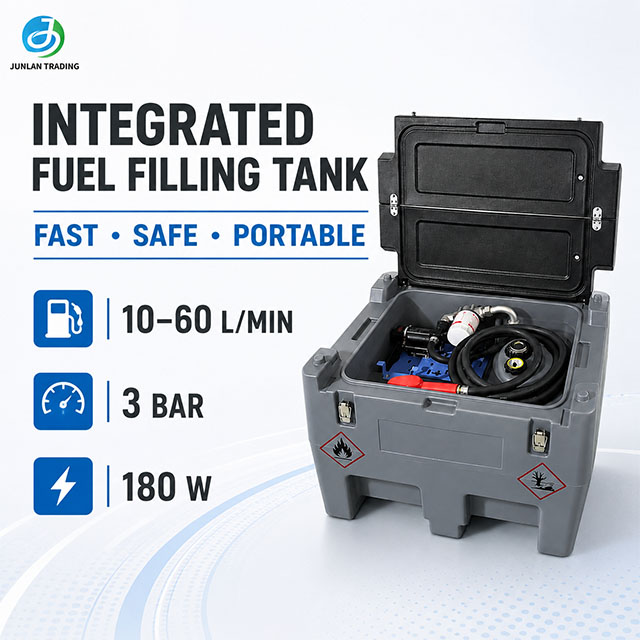

Fuel Tank

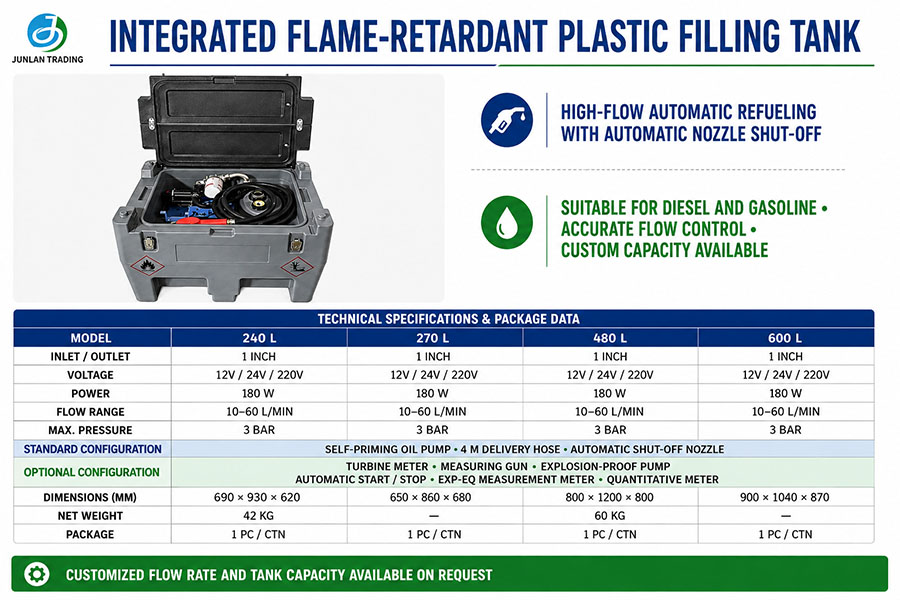

Technical Specifications & Package Data

Parameter

240 L Plastic Tank Fueling Kit

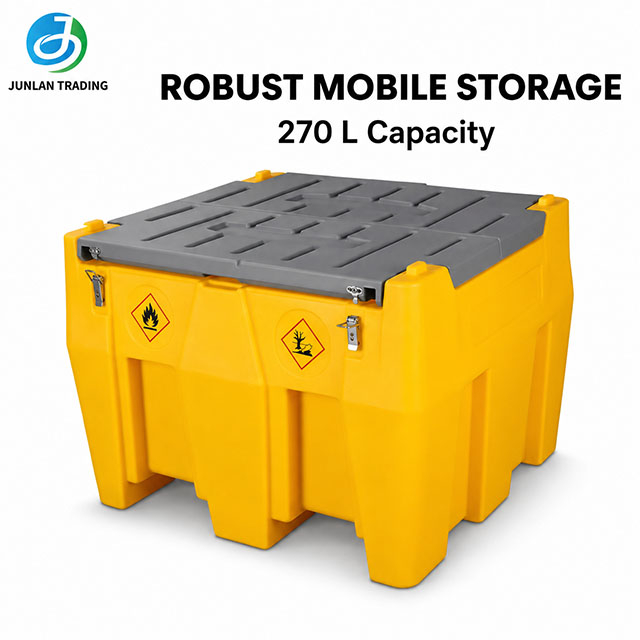

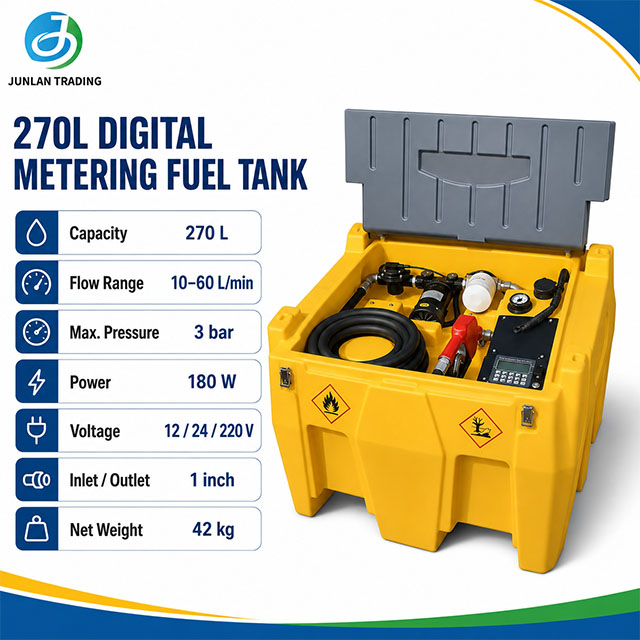

270 L Plastic Tank Fueling Kit

480 L Plastic Tank Fueling Kit

600 L Plastic Tank Fueling Kit

Inlet / Outlet Size

1"

1"

1"

1"

Voltage

12/24/220 V

12/24/220 V

12/24/220 V

12/24/220 V

Power

180 W

180 W

180 W

180 W

Flow Range

10–60 L/min

10–60 L/min

10–60 L/min

10–60 L/min

Maximum Working Pressure

3 bar

3 bar

3 bar

3 bar

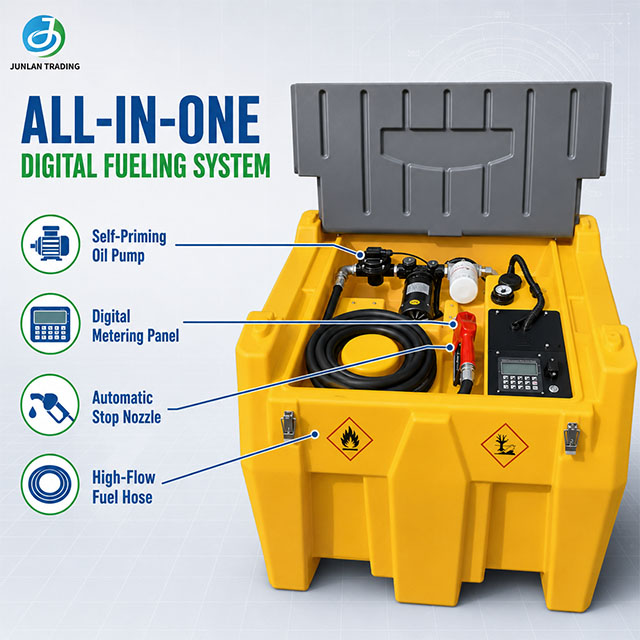

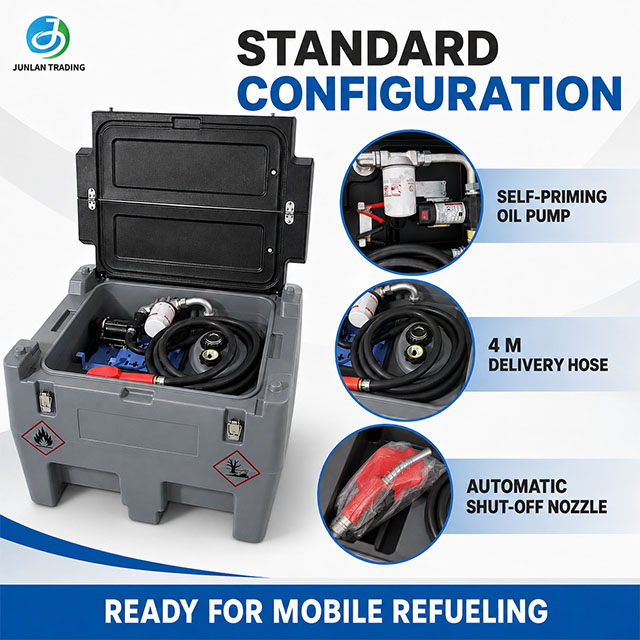

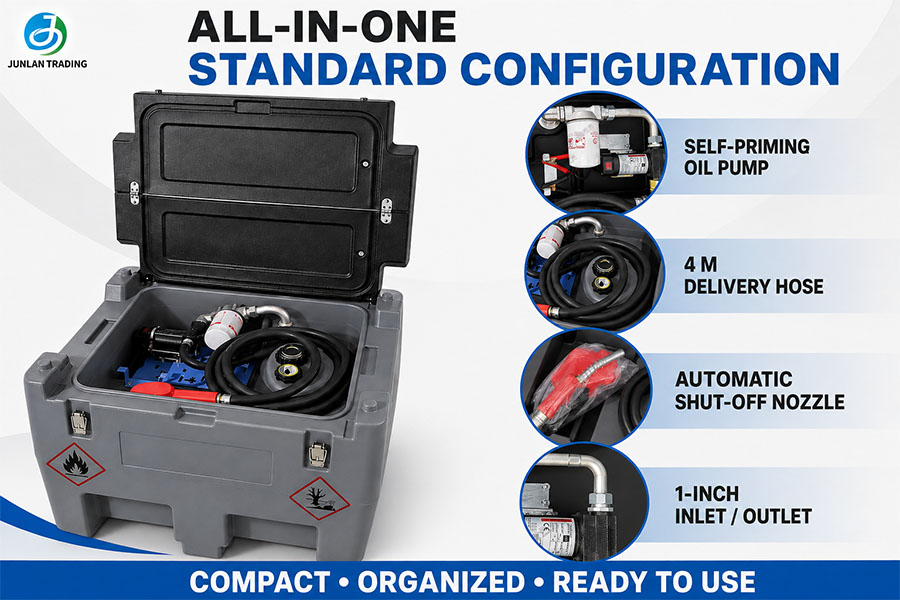

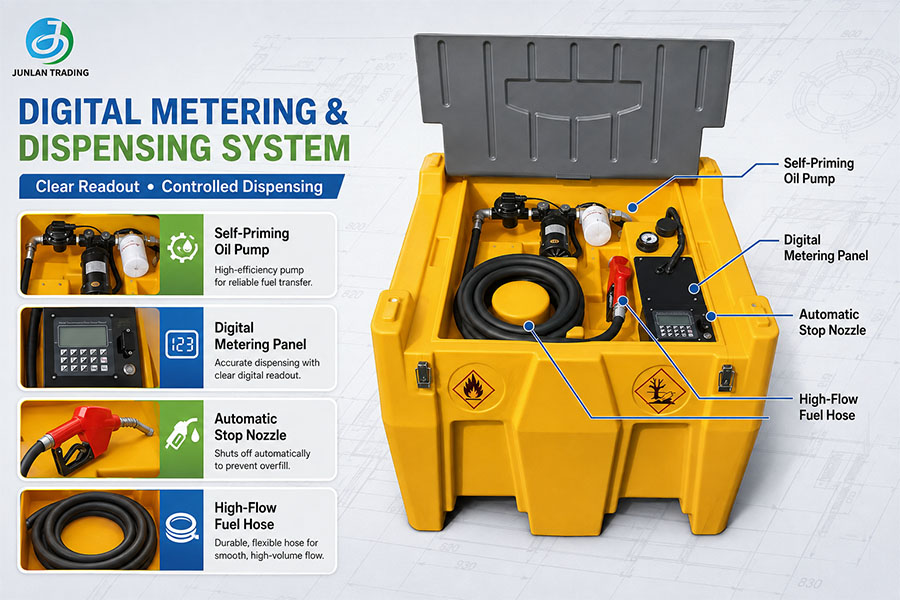

Standard Configuration

EXP-EQ Self-Priming Oil Pump

4 m Fuel Hose

Automatic Shut-off Fuel Nozzle

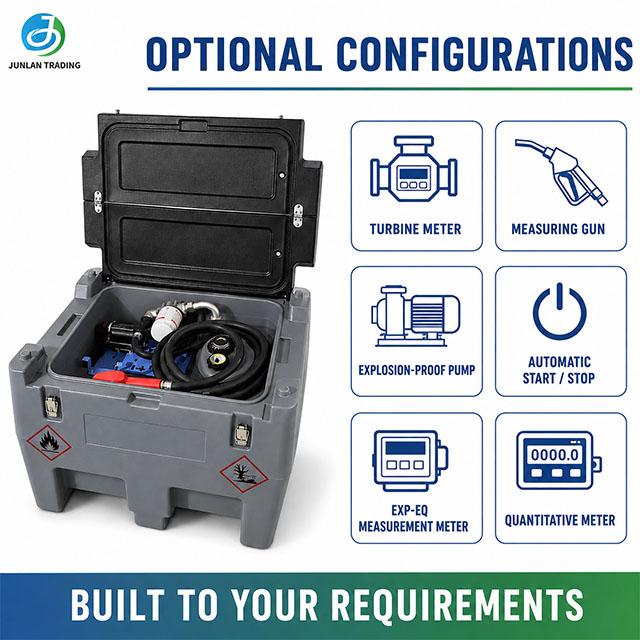

Optional Configuration

Turbine Flow Meter

Metering Nozzle

Explosion-Proof Pump

Automatic Start / Stop System

EXP-EQ Flow Meter

Not specified

Preset Meter

Preset Meter

Preset Meter

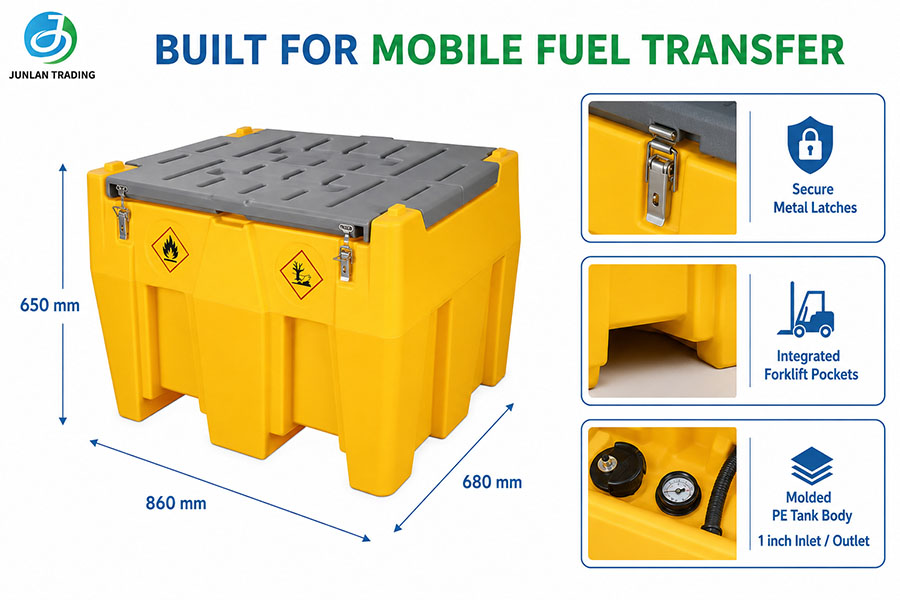

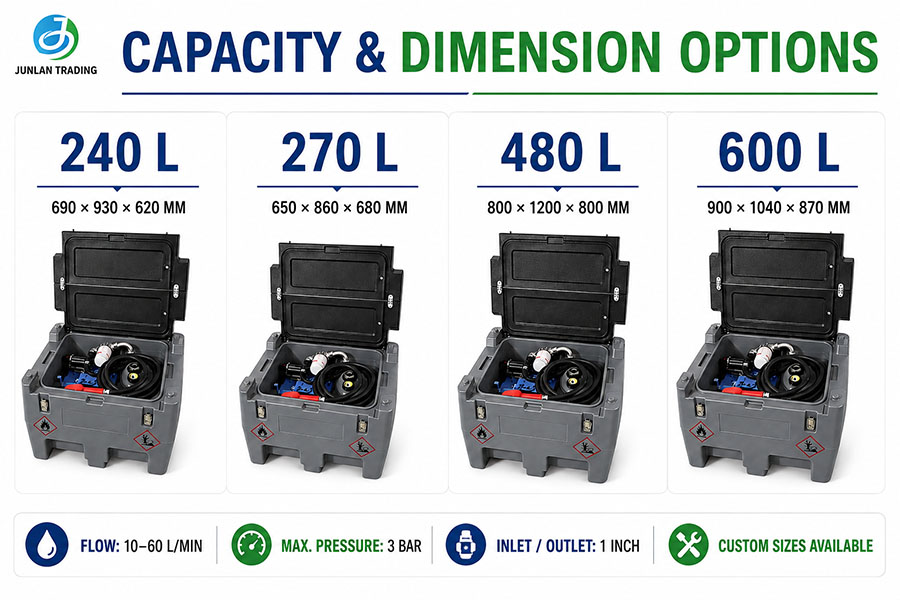

Dimensions (mm)

690×930×620

650×860×680

800×1200×800

900×1040×870

Net Weight

42 kg

Not specified

60 kg

Not specified

Gross Weight

Not specified

Not specified

Not specified

Not specified

Packing

1 pc/carton

1 pc/carton

1 pc/carton

1 pc/carton

Product Features: Automatic fueling equipment with automatic shut-off nozzle and precise control, for diesel and gasoline as stated in the source. Multiple flow specifications are available and can be customized.

Source note: Blank cells in the image are marked “Not specified”. Preset-meter entries appear under the 270 L and 480/600 L columns; the 240 L entry is blank. Media compatibility and the exact configuration should be confirmed with the supplier.
