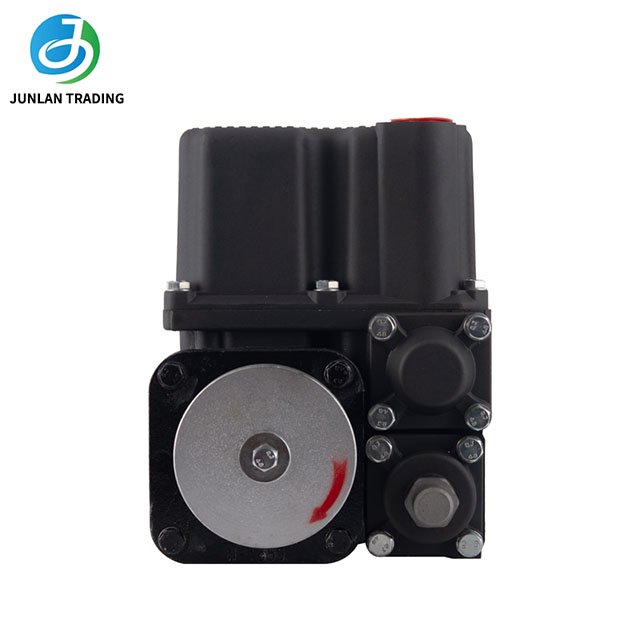

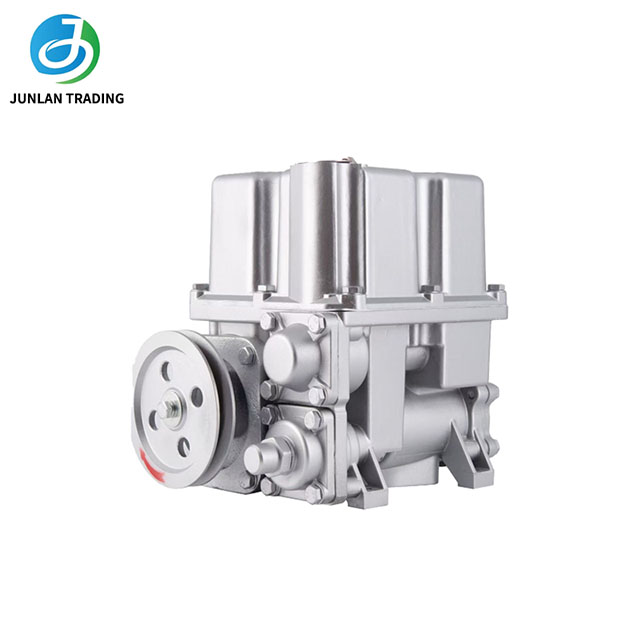

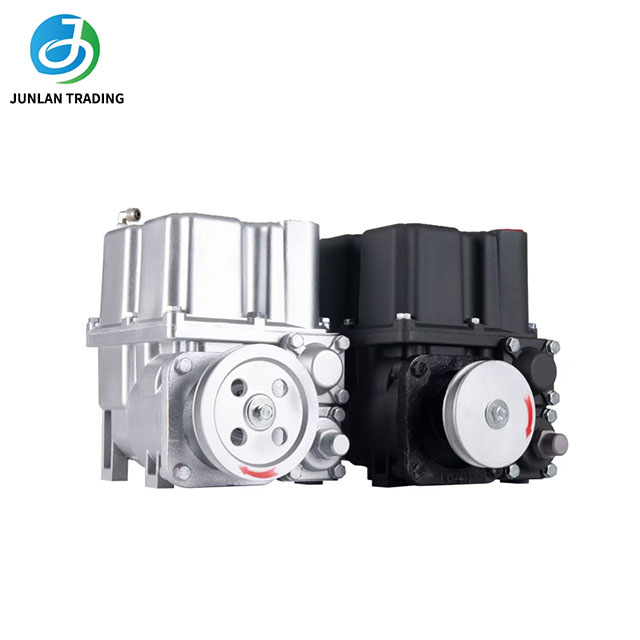

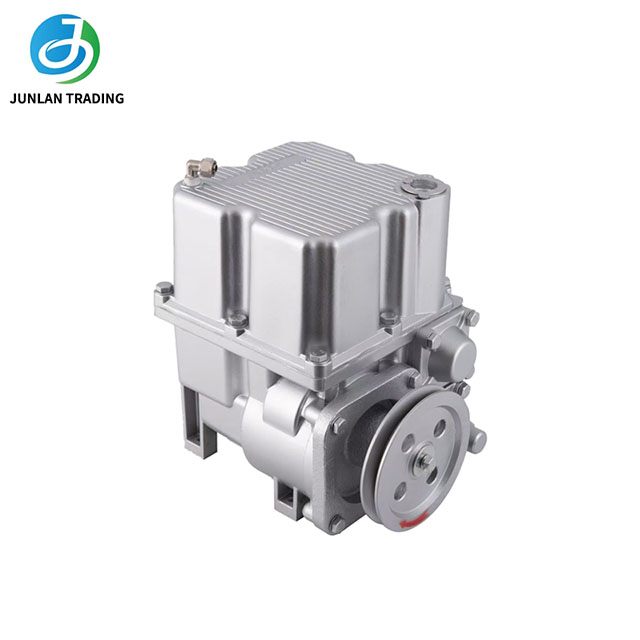

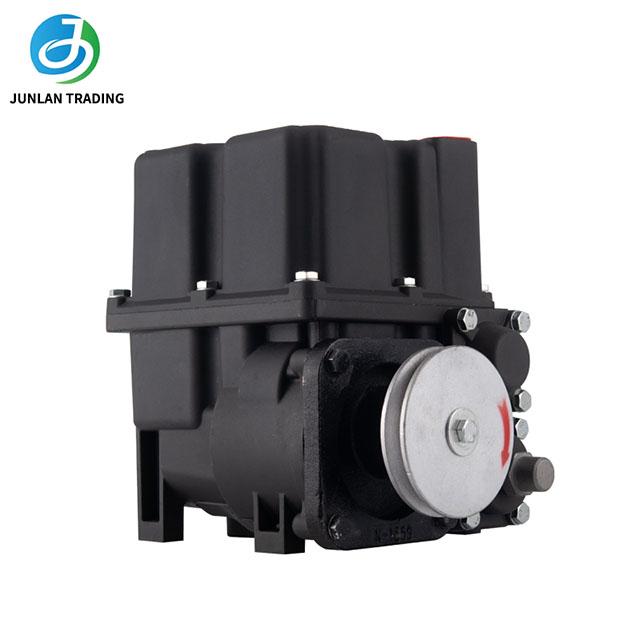

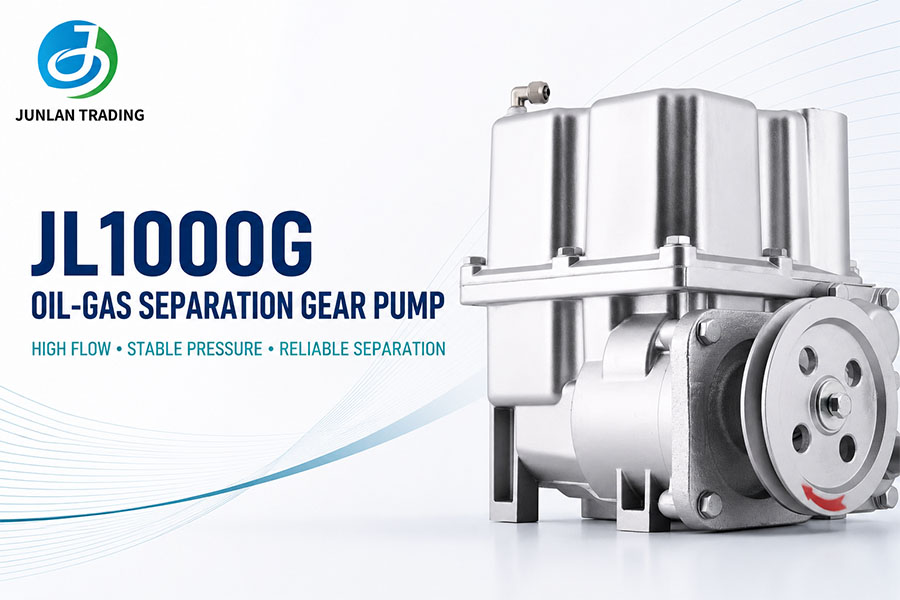

Combined Gear Pump

Product Name

Combined Gear Pump

Methanol-Resistant Combined Pump

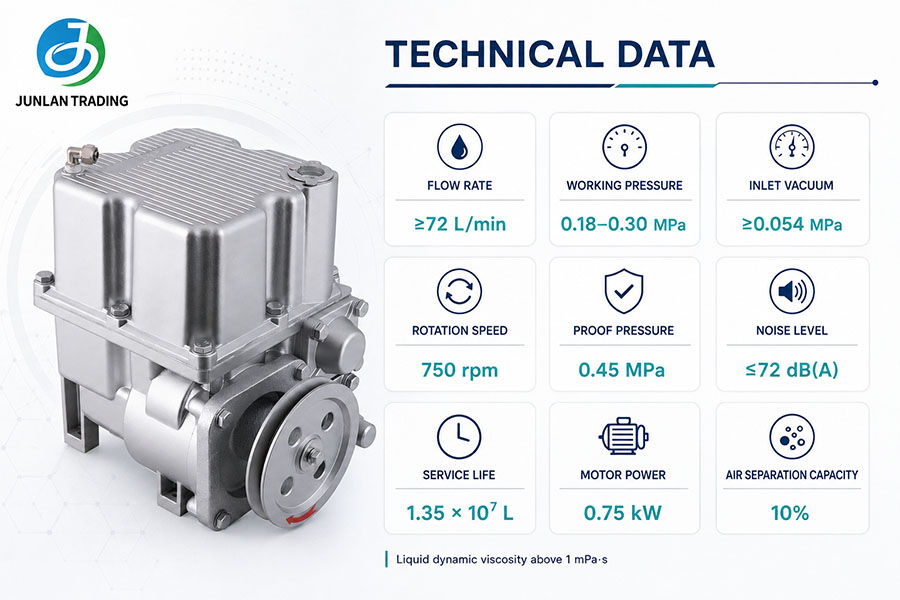

Technical Specifications

Flow Range

≥72L/min

Working Pressure

0.18-0.25MPa

Inlet Vacuum Pressure

≥0.054MPa

Rotor Speed

750r/min

Pressure Resistance

0.45MPa

Noise Level

≤72 dB(A)

Service Life

1.35 × 10^7 L

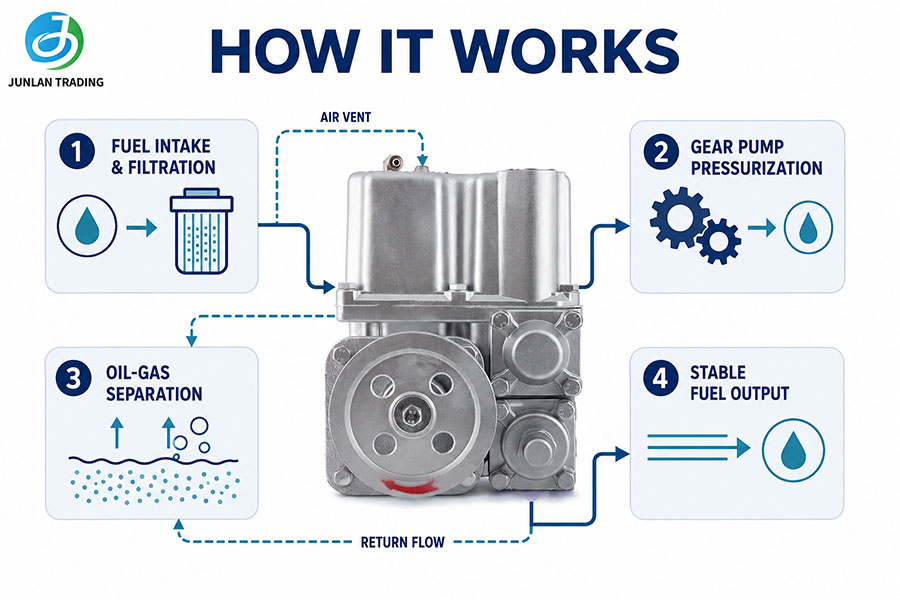

Air / Fuel Separation Capacity

10% (liquid dynamic viscosity above 1 mPa·s)

Motor Power

0.75KW

Size

Media

Oil

Methanol

Pump Body

Aluminum Alloy

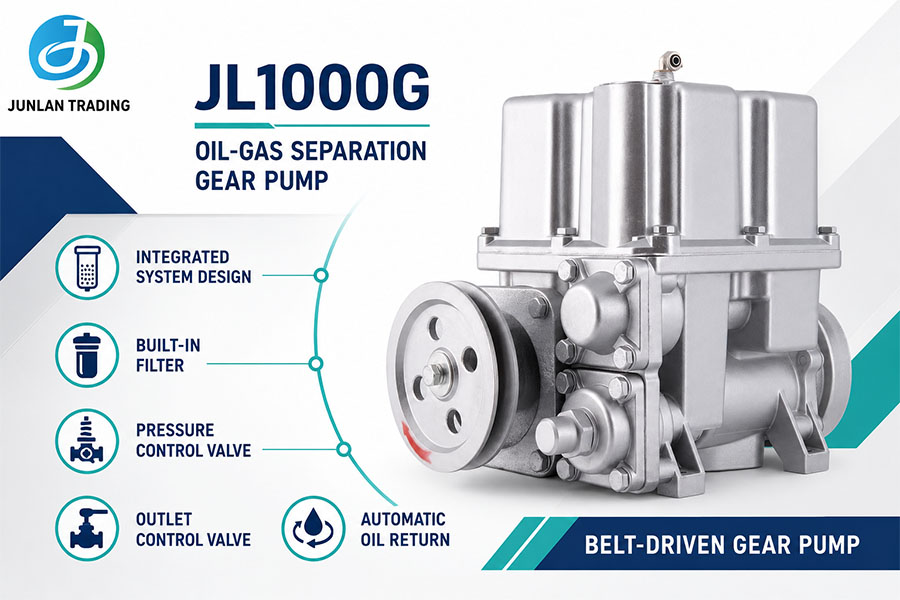

Product Introduction: This hydraulic component integrates several gear pump units or different pump types in one assembly. Its compact structure permits separate fluid outputs driven by a single shaft, saving space and meeting the supply needs of complex hydraulic systems.

Product Features
1. Compact, space-saving construction integrates multiple pump units in a common housing and reduces external piping.
2. A single drive shaft supplies multiple independent outputs for travel, steering and working mechanisms, simplifying transmission.
3. Fewer couplings, bearing housings and pipes reduce purchasing, installation and maintenance costs and simplify the system.
4. Combining gear, vane or other pump principles can optimize displacement, pulsation and efficiency.
5. Suitable for space-limited equipment requiring multiple fluid supplies, such as injection molding machines, construction machinery and die-casting machines.
