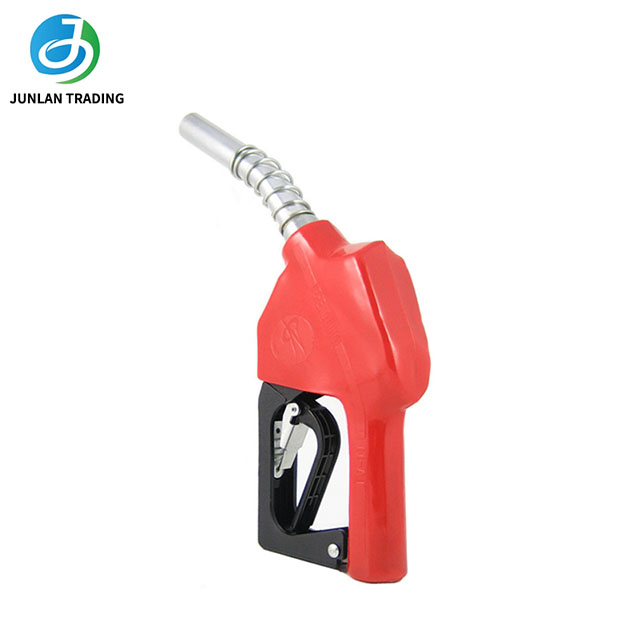

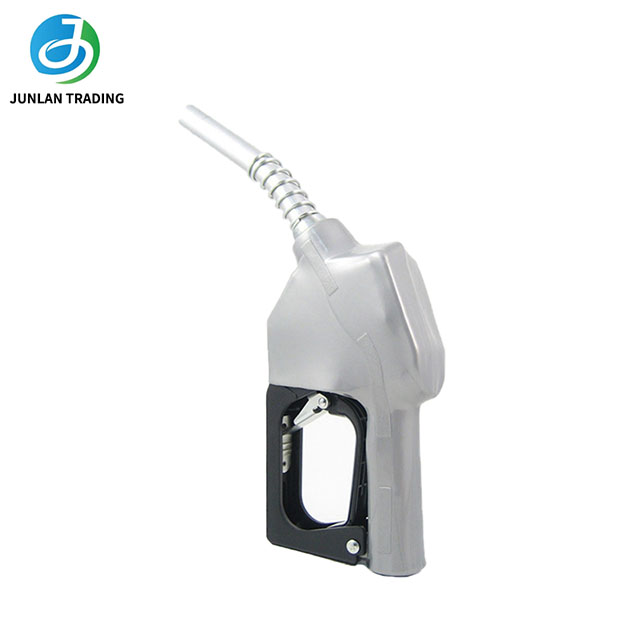

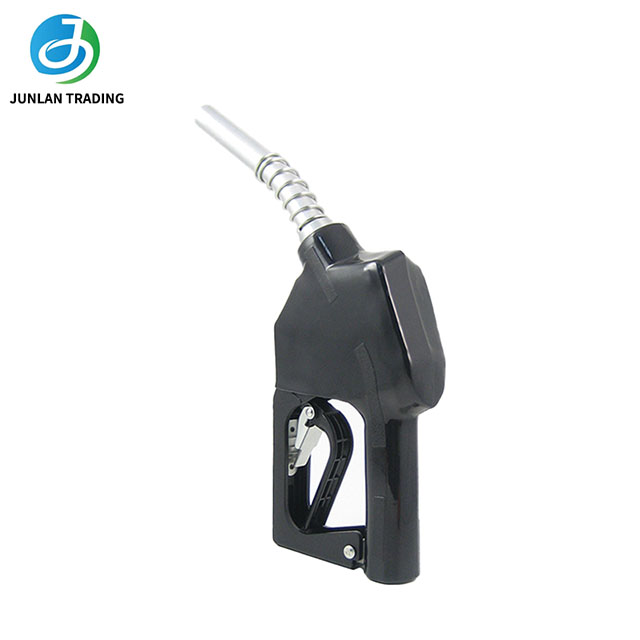

11A Fuel Nozzle

Product Name

11A Fuel Nozzle

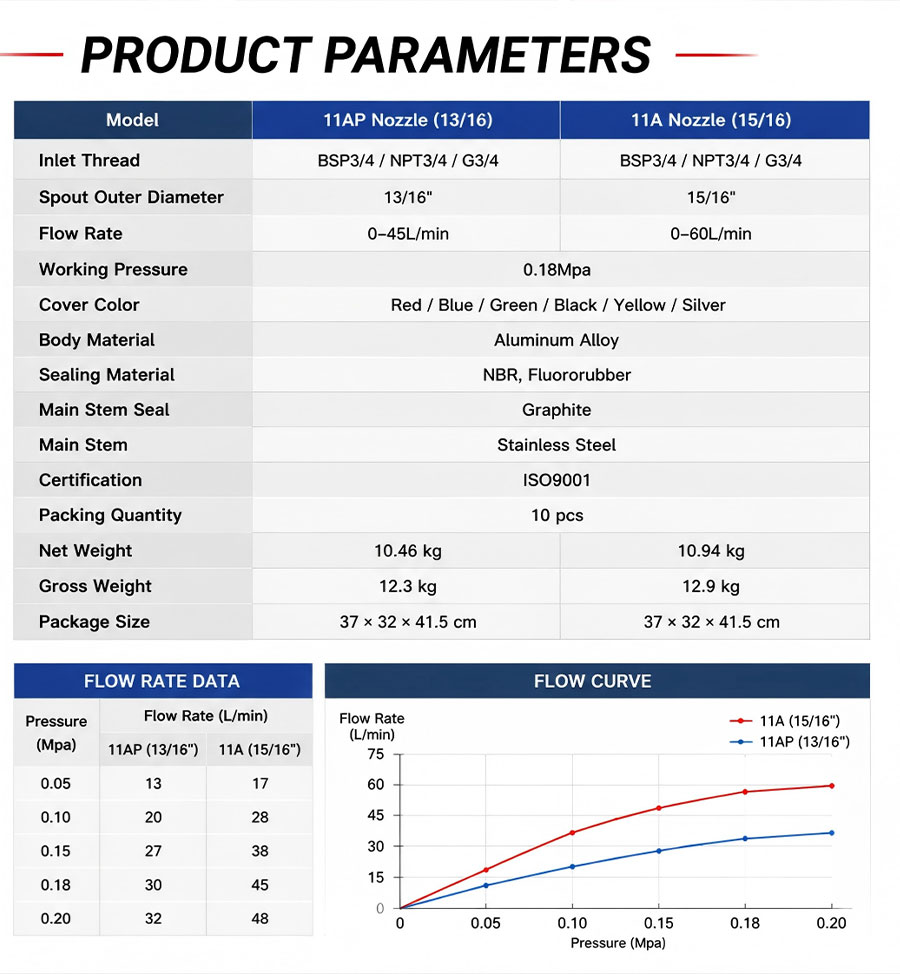

Model

11AP Fuel Nozzle (13/16)

11A Fuel Nozzle (15/16)

Inlet Thread

BSP3/4/NPT3/4/G3/4

BSP3/4/NPT3/4/G3/4

Spout Outside Diameter

13/16"

15/16"

Flow Range

0-45L/min

0-60L/min

Working Pressure

0.18Mpa

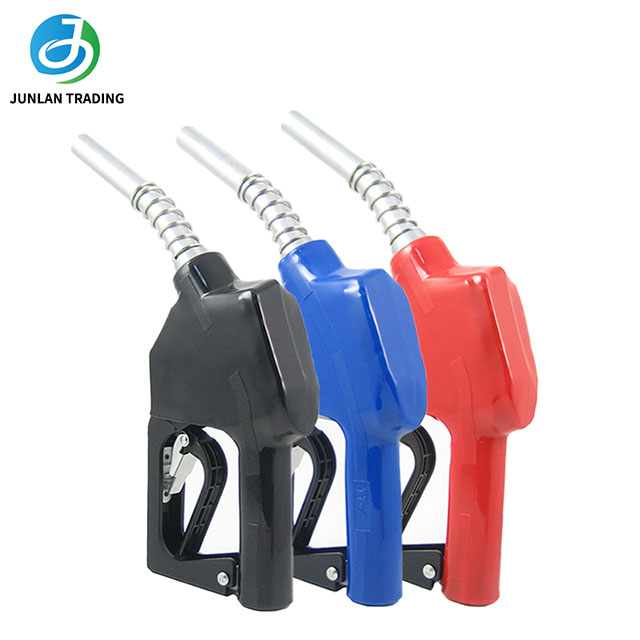

Cover Color

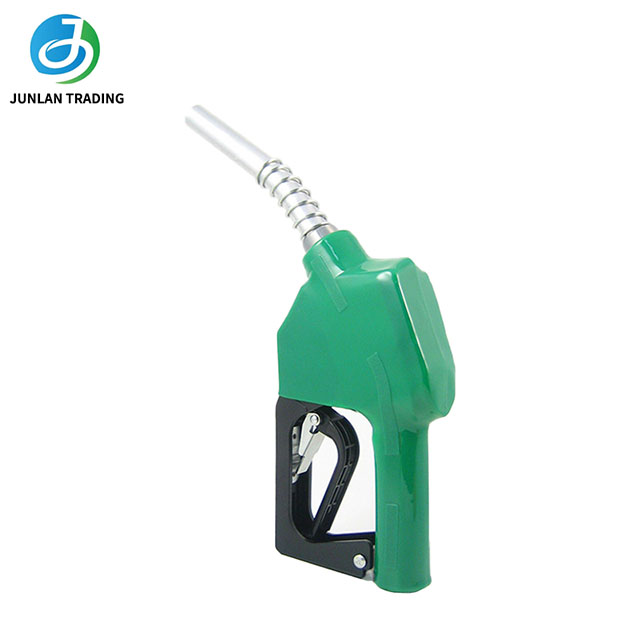

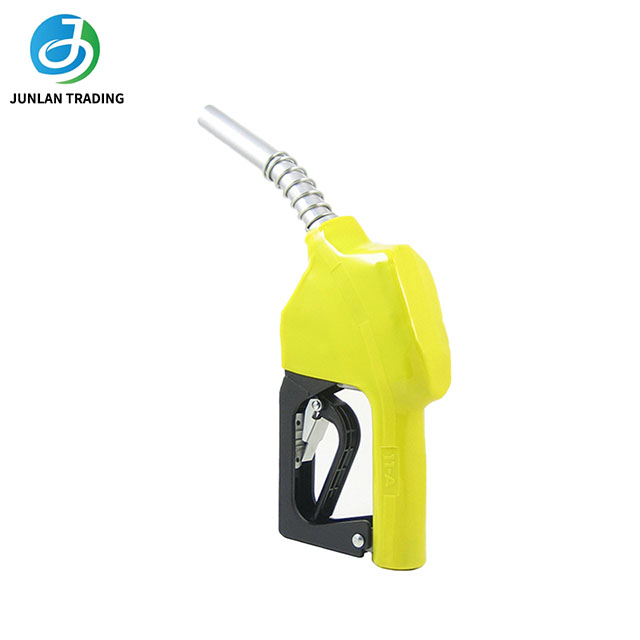

Red / Yellow / Blue / Green / Black / Gray

Nozzle Body

Aluminum Alloy

Sealing Ring

Nitrile Rubber / Fluoroelastomer

Main Stem Seal

Graphite

Main Stem

Stainless Steel

Certification

ISO9001

Packing Quantity

10 pcs/carton

Net Weight

10.46kg

10.94 kg

Gross Weight

12.3kg

12.9kg

Carton Dimensions

37*32*41.5cm³

37*32*41.5cm³

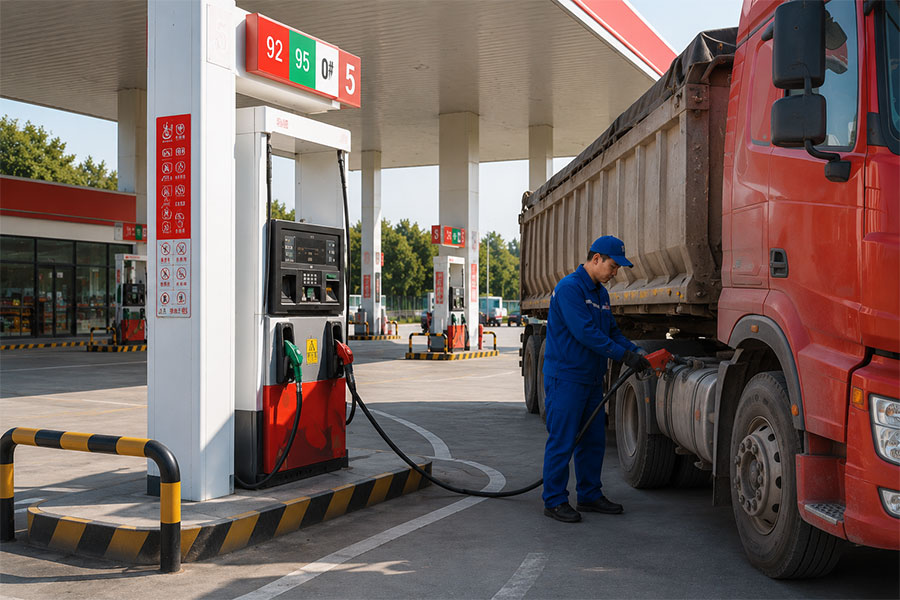

Product Introduction: The 11A is a widely used automatic shut-off fuel nozzle. It closes automatically when the tank is full to prevent fuel overflow. Three flow settings accommodate different fueling needs. The aluminum-alloy body is strong and easy to handle, suitable for dispensing gasoline, diesel and other light fuels at filling stations.

Product Features

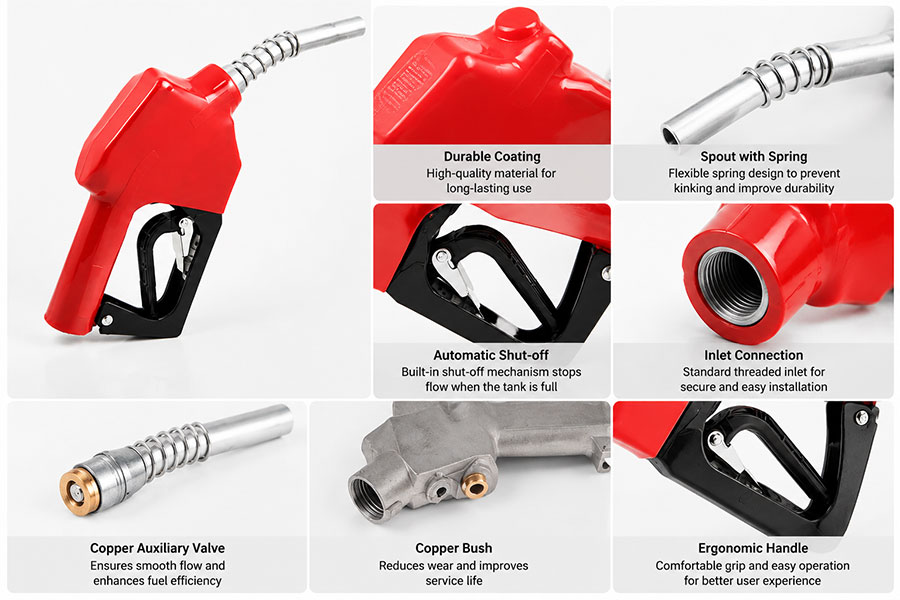

• Easy operation: lightweight, compact aluminum-alloy body reduces handling effort. Three standard flow settings allow selection of the required flow rate.
• Safety: automatically shuts off within ≤0.3 seconds when fuel covers the sensing opening, preventing overflow.

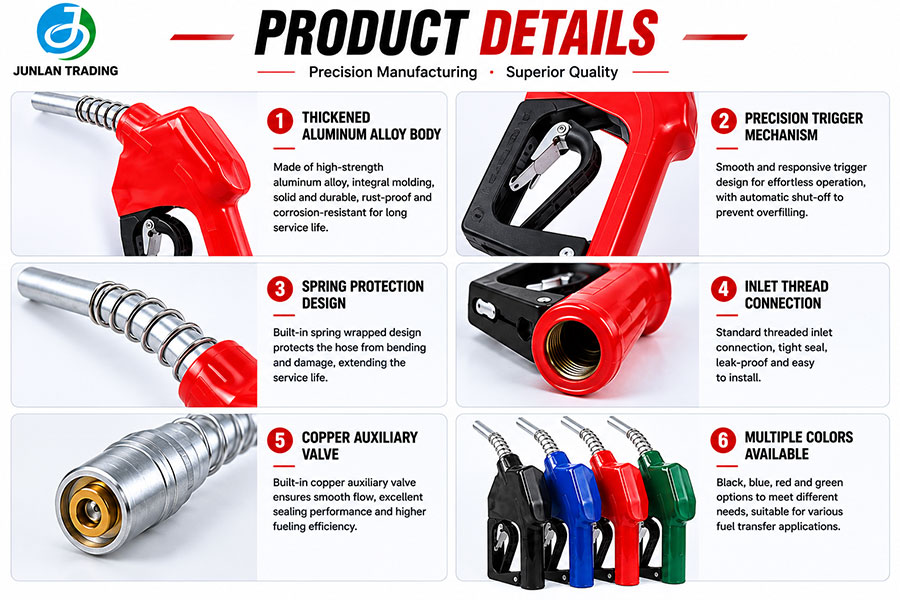

• Durability: die-cast aluminum-alloy body with stainless-steel key components offers strength, wear resistance and effective sealing.
